BuildKite emits OpenTelemetry traces natively. To setup Trunk CI we need to add Trunk’s ingest endpoint to the OTEL setup in BuildKite. There are two exports, and they are complementary:
  • The notification service, configured once for your BuildKite organization. It reports build and job lifecycle 0 start, finish, conclusion, queue wait. This is the one to set up first, and it is enough on its own.
  • Agent tracing, configured on your agents. It adds execution-time detail from inside the running build.
Both send to the same endpoint and share a trace, so a build reads as one thing whether you run one or both.

​
Before you start

BuildKite tells Trunk nothing about which repository a build belongs to except its git remote. Trunk parses owner/name out of that remote and looks for a matching repository in your organization. So the repository must already exist in Trunk and have CI Intelligence toggled on - see Getting Started. A pipeline whose remote does not resolve to a repository Trunk knows about is skipped silently.

​
Create Trunk API Key for the Uploads

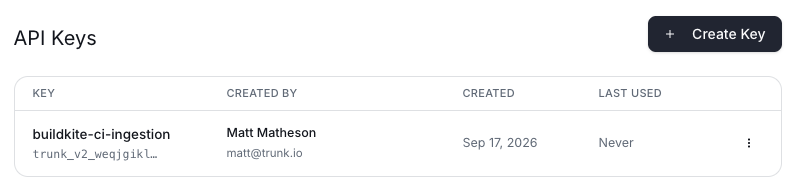

In the Trunk app, navigate to app.trunk.io/settings/developer/api-tokens. Create Api Key

​
Configure the notification service

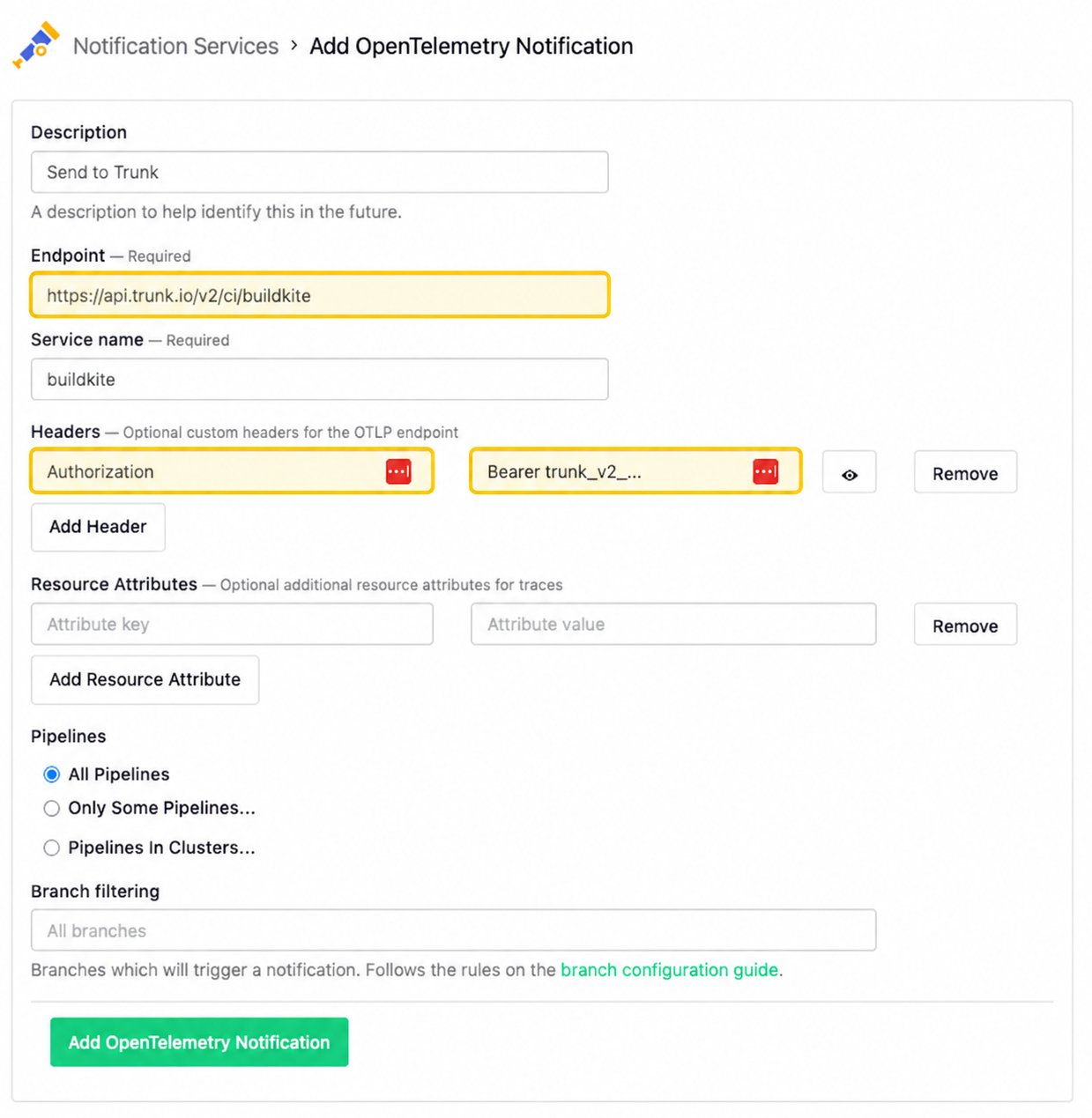

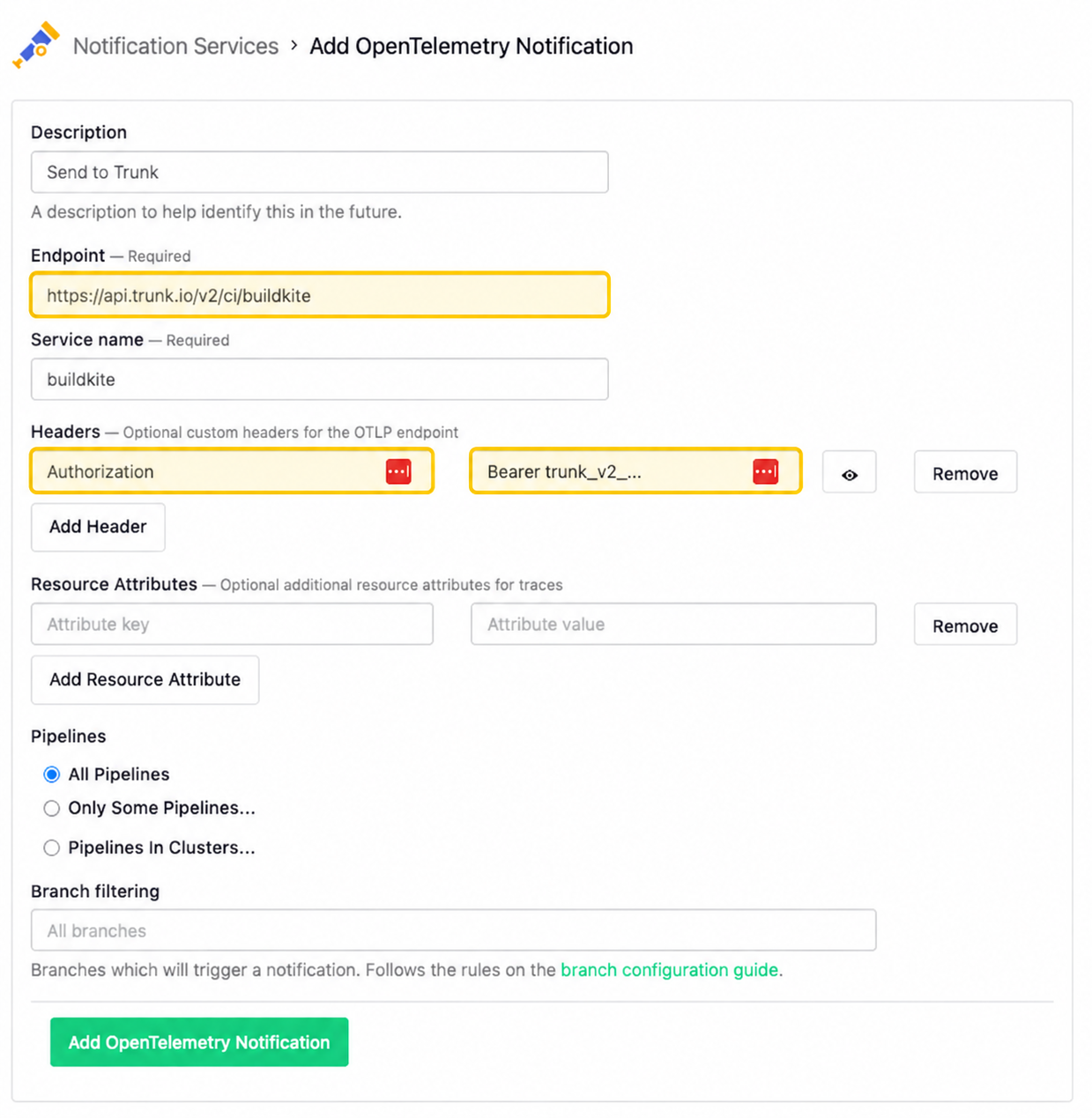

In BuildKite, navigate to Settings → Notification Services, then add an OpenTelemetry Tracing service. Buildkite Otel

​
Troubleshooting

Nothing arrives at all. The endpoint answers 401 for a token it does not recognize and 200 for everything it accepts, including an export it skips. Check the token first, then the repository gate below. A header without the Bearer prefix is also rejected with 401, so check its format too.
Buildkite shows the status codes Trunk returns only in the notification service’s request log. The request log is in preview, and Buildkite support has to turn it on for your organization. If your organization doesn’t have the request log, contact Buildkite support to turn it on before you debug further.
Builds arrive for one pipeline but not another. Each pipeline is matched to a Trunk repository through its own git remote. Confirm the remote resolves to a repository that exists in your Trunk organization and has CI Intelligence on. A repository was just enabled and still shows nothing. The gate is cached for up to 30 seconds. Trigger another build. Jobs show as running forever. Trunk closes a BuildKite job on the state Buildkite reports it finishing in. If you see this on a real pipeline, tell us - Buildkite’s OTLP vocabulary differs from its REST API’s, and an unrecognized state is deliberately treated as still-running rather than as a failure. A few BuildKite specifics are worth knowing:
  • Queue wait is inferred. Buildkite reports when a job became runnable and when it started, rather than emitting a span for the wait, so Trunk builds one from those two times.
  • Time held by a concurrency group is not queue time. It is time waiting for a concurrency slot, not for an agent, and is deliberately left out of queue duration.
  • A retry is a new attempt of the same step. BuildKite gives each retry a fresh job id and reuses the build, so Trunk numbers attempts by when each one became runnable.
