# Microsoft Teams integration

Trunk allows you to create custom workflows to send customized messages to Microsoft Teams channels through webhooks.

<figure><picture><source srcset="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-7e9aa861af6f04d86f089f54a3e0073b4cf8c563%2Fexample-slack-message-dark.png?alt=media" media="(prefers-color-scheme: dark)"><img src="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-3062f9345fea42778157a925c7a2db46a1185c3a%2Fexample-slack-message-light.png?alt=media" alt=""></picture><figcaption></figcaption></figure>

This guide will walk you through sending Microsoft Teams messages using event-triggered webhooks. By the end of this tutorial, you'll receive Microsoft Teams messages for test status changes. This guide should take 10 minutes to complete.

### 1. Configure incoming webhooks for your team

Microsoft has two different concepts for accepting incoming webhooks. **Connectors** that are being deprecated and **Workflows** that are for newly created teams. This guide is for the newer **Workflows**. The workflow for configuring webhooks is similar, but you may see small differences. You can find more about the soon to be deprecated connectors in [Microsoft's documentation](https://learn.microsoft.com/en-us/microsoftteams/platform/webhooks-and-connectors/how-to/add-incoming-webhook?tabs=newteams%2Cdotnet).

1. Open the team in which you want to add the webhook and select the kebab menu (•••) from the upper-right corner.
2. Select **Workflows** from the dropdown menu.
3. Search for `Post to a channel when a webhook request is received`, select the workflow, then click **Next**.
4. Configure the workflow's **Microsoft Teams Team** and **Microsoft Teams Channel**, then click **Add workflow**.
5. When the workflow is added correctly, you can copy the URL displayed, then click **Done.**

### 2. Add a new webhook

Trunk uses Svix to integrate with other services, such as Microsoft Teams messages through webhooks.

You can create a new endpoint by:

1. Login to [Trunk Flaky Tests](https://app.trunk.io/login?intent=flaky%20tests)
2. From your profile on the top right, navigate to **Settings**

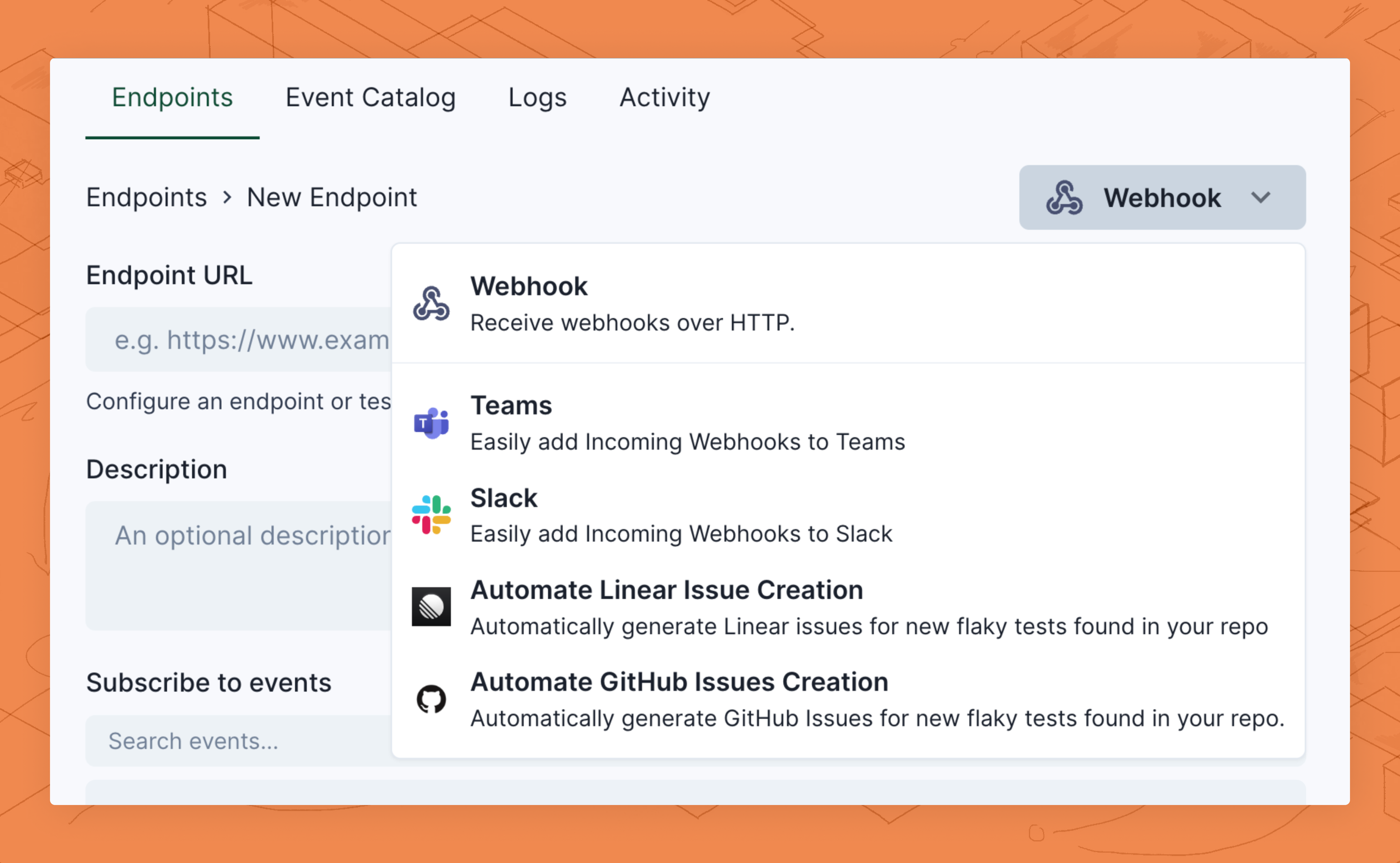

3. Under **Organization > Webhooks**, click **Teams**

   <figure><picture><source srcset="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-397bff2e4f2eb1e8ae4d7de898e6f83466e63d8f%2Fexample-webhook-connector-dark.png?alt=media" media="(prefers-color-scheme: dark)"><img src="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-ba95784c2cf8a7facfa350339a5c7675b29ec01d%2Fexample-webhook-connector-light.png?alt=media" alt=""></picture><figcaption></figcaption></figure>
4. Paste your Microsoft Teams Workflow URL from [the previous step ](#id-1.-configure-incoming-webhooks-for-your-team)into **Endpoint URL**.
5. Review the transformation code automatically generated for Teams messages. You can customize this transformation at any time. Learn more about [customizing transformations](#id-3.-customize-your-transformation).
6. Create the new endpoint. You will be redirected to the endpoint configuration view.

### 3. Customize your transformation

Transformations are custom code snippets you can write to customize the Microsoft Teams messages created by the webhook. A working template transformation will be added automatically for your webhook, but you can further customize the behavior of this webhook.

1. In the endpoint configuration view, navigate to the **Advanced** tab. Under **Transformation**, toggle the **Enabled** switch.
2. Click **Edit transformation** to update your transformation code, and click **Save** to update the transformation.
3. You can test the transformation by selecting the `test_case.status_changed` payload and clicking **Run Test**. This will test the transformation but not send a message. You will learn to send a test message in [step 4](#id-4.-test-your-webhook).

Below is an example of a webhook transformation to format the messages as [Actionable Messages](https://learn.microsoft.com/en-us/microsoftteams/platform/webhooks-and-connectors/how-to/connectors-using?tabs=cURL%2Ctext1). If you're having trouble adding a new webhook endpoint with Svix, please see the [Adding Endpoint docs from Svix](https://docs.svix.com/receiving/using-app-portal/adding-endpoints).

```javascript
/**
 * @param webhook the webhook object
 * @param webhook.method destination method. Allowed values: "POST", "PUT"
 * @param webhook.url current destination address
 * @param webhook.eventType current webhook Event Type
 * @param webhook.payload JSON payload
 * @param webhook.cancel whether to cancel dispatch of the given webhook
 */
function handler(webhook) {
  // See https://learn.microsoft.com/en-us/microsoftteams/platform/webhooks-and-connectors/how-to/connectors-using#send-adaptive-cards-using-an-incoming-webhook
  webhook.payload = summarizeTestCase(webhook.payload);

  return webhook;
}

function summarizeTestCase(payload) {
    if (!payload || typeof payload !== 'object' || !payload.test_case) {
        return {
            type: "message",
            attachments: [{
                contentType: "application/vnd.microsoft.card.adaptive",
                contentUrl: null,
                content: {
                    $schema: "http://adaptivecards.io/schemas/adaptive-card.json",
                    type: "AdaptiveCard",
                    version: "1.2",
                    body: [{
                        type: "TextBlock",
                        text: "Error: Invalid or missing payload received by Trunk Flaky Test Webhook Transformation.",
                        color: "attention"
                    }]
                }
            }]
        };
    }

    const {
        test_case: {
            name = "N/A",
            file_path = "N/A",
            status = {},
            quarantine = false,
            repository = {},
            codeowners = [],
            failure_rate_last_7d = 0,
            most_common_failures = [],
            pull_requests_impacted_last_7d = 0,
            ticket = {},
            html_url = "N/A"
        }
    } = payload;

    const statusTimestamp = status.timestamp
        ? new Date(status.timestamp).toLocaleString()
        : "Unknown";

    // most_common_failures is a beta feature currently being tested
    // If you are not on the beta it will be an empty array
    // Want to try it out? Ask in slack.trunk.io
    const failureBlocks = most_common_failures.map(failure => ({
        type: "TextBlock",
        text: `• ${failure.summary}`,
        wrap: true,
        spacing: "small"
    }));

    return {
        type: "message",
        attachments: [{
            contentType: "application/vnd.microsoft.card.adaptive",
            contentUrl: null,
            content: {
                $schema: "http://adaptivecards.io/schemas/adaptive-card.json",
                type: "AdaptiveCard",
                version: "1.2",
                body: [
                    {
                        type: "TextBlock",
                        text: name,
                        size: "large",
                        weight: "bolder"
                    },
                    {
                        type: "TextBlock",
                        text: file_path,
                        isSubtle: true,
                        spacing: "none"
                    },
                    {
                        type: "FactSet",
                        facts: [
                            {
                                title: "Status",
                                value: `${status.value || "Unknown"} (${status.reason?.trim() || "N/A"})`
                            },
                            {
                                title: "Last Updated",
                                value: statusTimestamp
                            },
                            {
                                title: "Quarantine Status",
                                value: quarantine ? "Quarantined" : "Not Quarantined"
                            },
                            {
                                title: "Failure Rate (7d)",
                                value: `${(failure_rate_last_7d * 100).toFixed(1)}%`
                            },
                            {
                                title: "PRs Impacted (7d)",
                                value: pull_requests_impacted_last_7d.toString()
                            },
                            {
                                title: "Codeowners",
                                value: codeowners.join(", ") || "None"
                            }
                        ]
                    },
                    {
                        type: "TextBlock",
                        text: "Most Common Failures",
                        weight: "bolder",
                        spacing: "medium"
                    },
                    ...failureBlocks,
                    {
                        type: "ActionSet",
                        actions: [
                            {
                                type: "Action.OpenUrl",
                                title: "View Repository",
                                url: repository.html_url || "#"
                            },
                            {
                                type: "Action.OpenUrl",
                                title: "View Test Details",
                                url: html_url || "#"
                            },
                            {
                                type: "Action.OpenUrl",
                                title: "View Related Ticket",
                                url: ticket.html_url || "#"
                            }
                        ]
                    }
                ]
            }
        }]
    };
}
```

### 4. Test your webhook

You can send test messages to your Microsoft Teams channels as you make updates. You can do this by:

1. In the endpoint configuration view, navigate to the **Testing** tab and select a **Send event**
2. Under **Subscribed events,** select `test_case.status_changed`as the event type to send.
3. Click **Send Example** to test your webhook

### 5. Monitoring webhooks

You can monitor the events and the webhook's delivery logs in the **Overview** tab of an endpoint configuration view.

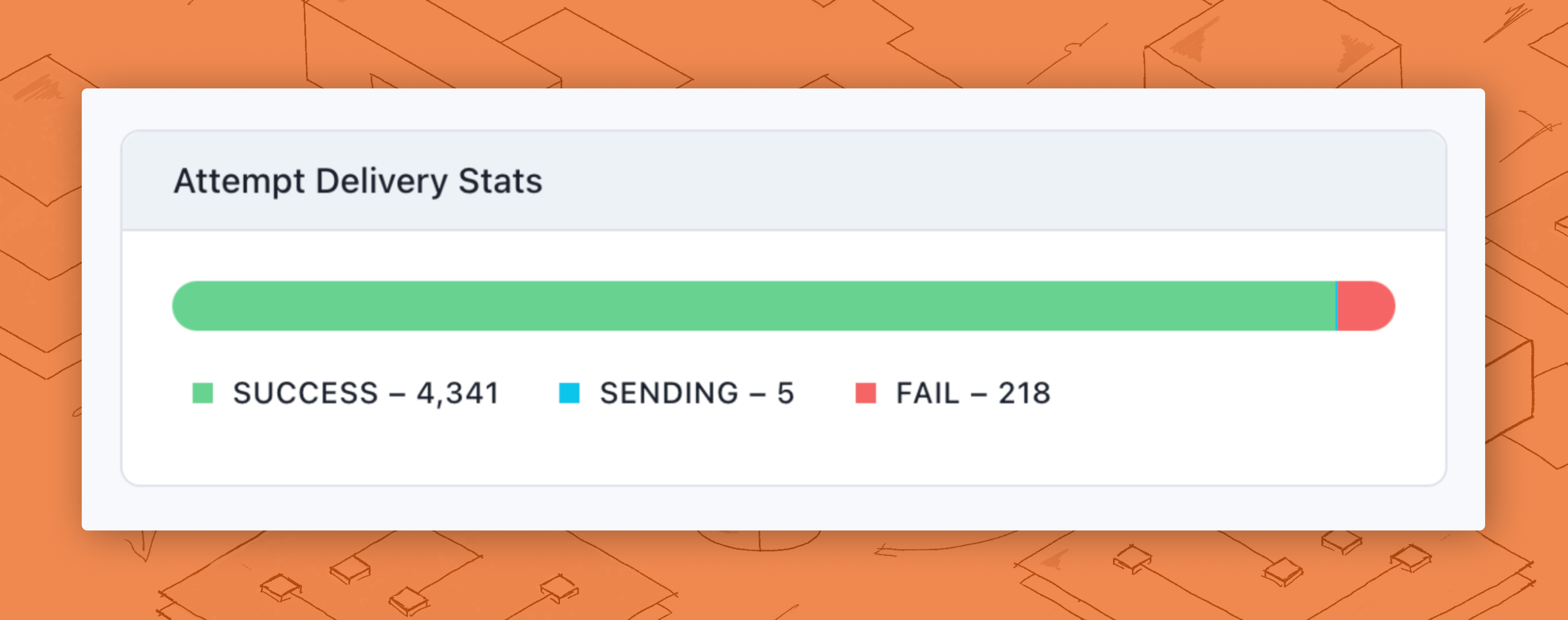

You can see an overview of how many webhook deliveries have been attempted, how many are successful, how many are in flight, and how many fail in the **Attempt Delivery Status** modal.

<figure><img src="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-800d6bb45227c3380528a732efb25c222a3a7d95%2Fexample-webhook-delivery-status.png?alt=media" alt=""><figcaption></figcaption></figure>

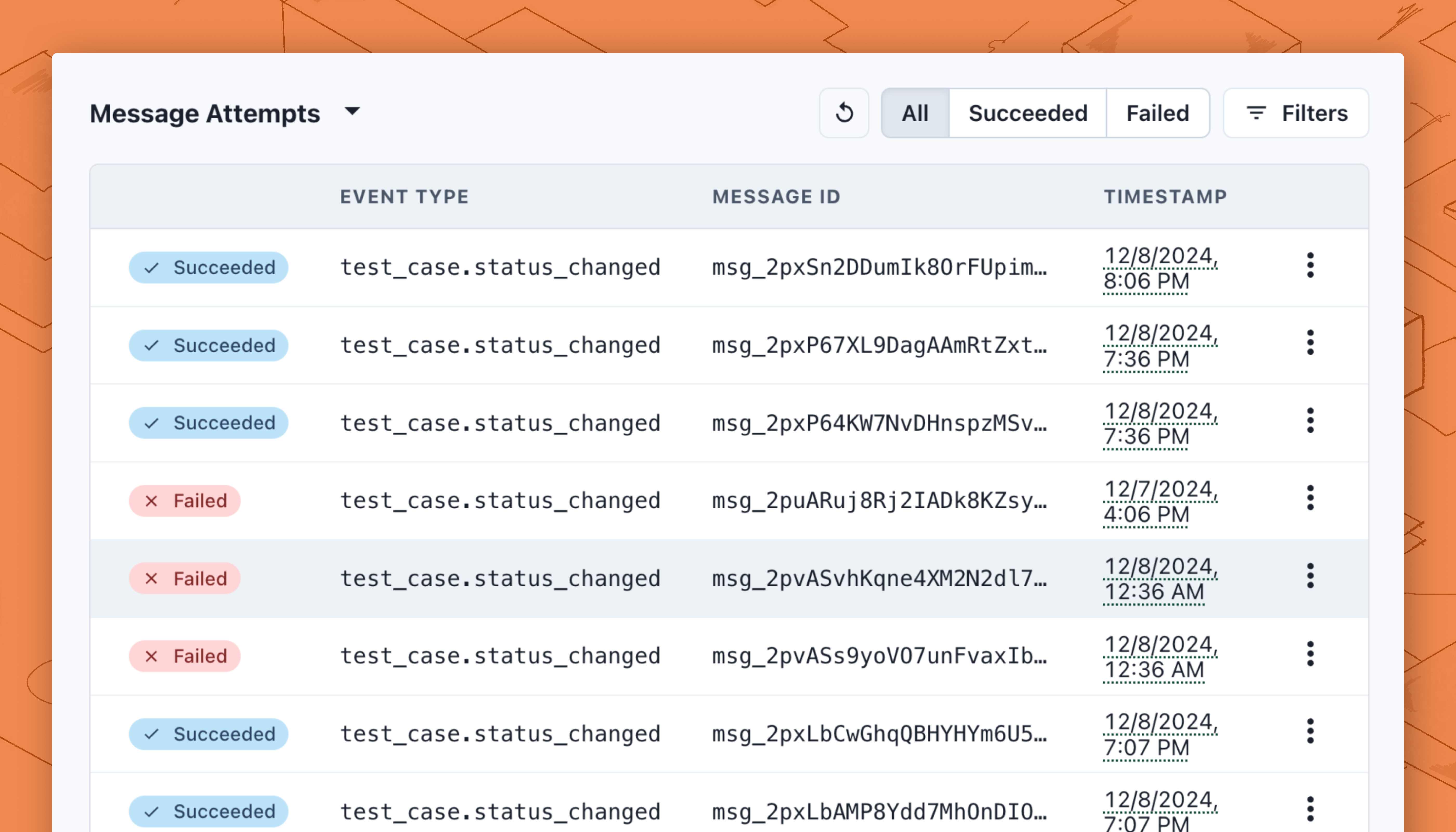

You can see a list of past delivery attempts in the **Message Attempts** modal. You can filter this list by **Succeeded** and **Failed** status, and you can click on each message to see the **Message content**, response code, and error message of each attempt. You can learn more about [replaying messages](https://docs.svix.com/receiving/using-app-portal/replaying-messages) and [filtering logs](https://docs.svix.com/receiving/using-app-portal/filtering-logs) in the Svix docs.

<figure><img src="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-60f168e9229197c019fb193fadb8905bd571147e%2Fexample-webhook-logs.png?alt=media" alt=""><figcaption></figcaption></figure>

### Congratulations!

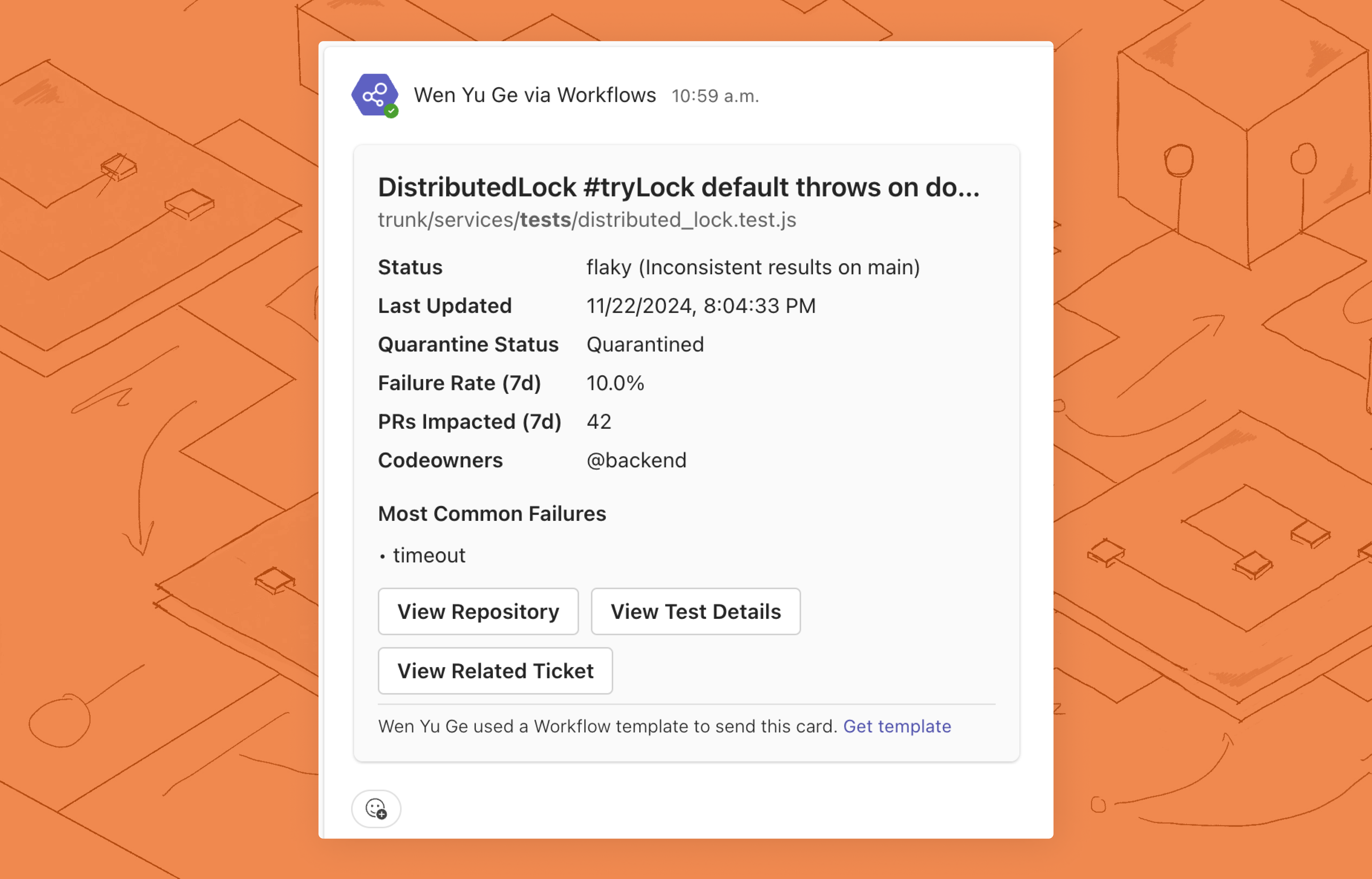

You should now receive notifications in your Teams channel when a test's status changes. You can further modify your transformation script to customize your messages.

<figure><picture><source srcset="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-7e9aa861af6f04d86f089f54a3e0073b4cf8c563%2Fexample-slack-message-dark.png?alt=media" media="(prefers-color-scheme: dark)"><img src="https://577236045-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F61Ep9MrYBkJa0Yq3zS1s%2Fuploads%2Fgit-blob-3062f9345fea42778157a925c7a2db46a1185c3a%2Fexample-slack-message-light.png?alt=media" alt=""></picture><figcaption></figcaption></figure>

[See the Trunk webhook event catalog](https://www.svix.com/event-types/us/org_2eQPL41Ew5XSHxiXZIamIUIXg8H/#test_case.status_changed)

[Learn more about consuming webhooks in the Svix docs](https://docs.svix.com/receiving/introduction)

[Learn more about Microsoft Teams Workflow Webhooks](https://support.microsoft.com/en-us/office/create-incoming-webhooks-with-workflows-for-microsoft-teams-8ae491c7-0394-4861-ba59-055e33f75498)
